FUSIONSEEKER DS-50S5

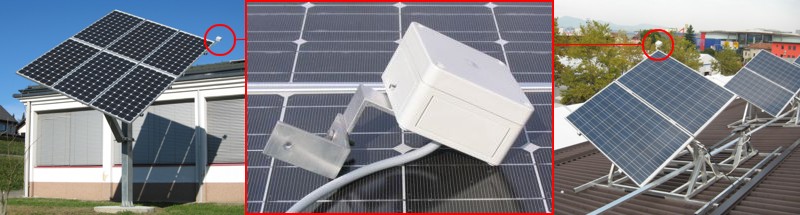

FUSIONSEEKER DS-50S5 is a universal sensory solar tracker controller designed to be used with all single-axis solar trackers (low concentration ratio solar concentrators included) that use permanent magnet DC motors for moving. Its superiorities are high tracking accuracy, great electrical capabilities, high reliability, long expected life time and also watertight "2in1" polycarbonate housing that serves as a "shadow maker" for sensors and as an all weather resistant protection for electronics. Installation is also very simple - because all components are packed in one "2in1" housing. You just fix it on to the solar "receiver", connect two wires to supply voltage and other two wires to motor and that's it. And don't forget it's maintenance free - install and forget!
The heart of FUSIONSEEKER DS-50S5 is its 100% solid state (no moving parts inside, no potentiometers, no relays!!!) and software free (all features are implemented with pure hardware - no reset buttons, no Windows® blue screens!!!) electronics that for functioning needs so little power that energy consumption (about 0,001 kWh per day) can simply be ignored. DS-50S5 is working on a principle of equalized output signals of its two light sensors. When output signals from sensors are different (solar "receiver" is not faced precisely to the sun - "2in1" housing is shading one light sensor) electronics, with the help of POWER MOS-FET transistors, turns on the motor and keeps it running. Immediately after output signals from sensors equalize (solar "receiver" is again faced precisely to the sun) the motor is turned off and with the help of electronic brake instantly stopped. This electronic brake is in function always but it becomes absolutely necessary in case you set DS-50S5's accuracy to highest level (without brake system oscillates!). This sequence is repeating throughout all day till sunfall when tracker (motor) stops facing to the west. Next morning when first sun rays appear DS-50S5 with its additional (third) bottom sensor notices that and turns on the motor to move the tracker to the east. After some 5 minutes (it depends on the speed of tracker's rotation) tracker is facing to the east and sequence described above starts to repeat again. In case when clouds cover the sun DS-50S5 can stop tracking or it can turn solar tracker towards the brightest cloud - that depends on what tracking accuracy you choose (set). And immediately after clouds disappear it will in every case turn the tracker toward the sun. In short, FUSIONSEEKER DS-50S5 is a solar tracker controller that will always satisfy all your single-axis sun tracking needs.
|
|
||
|
Type: |
"single-axis" |
|
|
Supply voltage (DC): |
Uin =
from 10V to 50V DC covered with two selectable input voltage ranges:
Voltage range A: Uin = from 10V to 25V
Voltage range B: Uin = from 20V to 50V
Factory defaults: voltage range B |
|
|
Accepted (applicable) supply voltage sources: |
Any external power supply or battery |
|
|
Output current (max. motor current): |
Iout,cont. =
5A (continuous load!!!)
Iout,10s =
6A
(up to 10 seconds)
Iout,max =
20A
(short duration - for motor startup) |
|
|
Output voltage (motor voltage): |
Uout = Uin - 0,3V at Iout = 2,5A
Uout = Uin - 0,6V at Iout = 5A |
|
|
Electronics self consumption: |
at Uin = 12V just
0,8mA
at Uin = 24V only
1,3mA
(and intelligently built electronics consume always
the same without regard to DC motor being in operation or not!) |
|
|
Tracking accuracy: |
up to
+0,05 degree at 1000W/m2 (it is settable)
Factory defaults: + 0,3 degree (at 1000W/m2) |
|
|
Electronic motor brake: |
YES |
|
|
Operating temperature range:
|
from -25°C to +70°C |
|
|
Housing: |
Material: fiberglass-reinforced
polycarbonate (UV and high temperature resistant)
Seal: all-round foamed-in PU seal
Colour: light grey RAL 7035
IP class: IP 66 |
|
|
Dimensions: |
width: 94mm, height: 57mm, length: 94mm |
|
|
Weight: |
0,38kg |
|
|
Maintenance: |
It's maintenance free |
|
|
Expected life time: |
10 years + |
|
For more information see FUSIONSEEKER DS-50S5 INSTRUCTION MANUAL (for viewing you need Adobe® Reader®)
|
